Rack Mounted Fiber Optic Patch Panel 3U ODF 19" 48 Port Fiber Patch Panel

Brand Name : GoreLink

Model Number : GL-ODF24LC-902

Certification : RoHS,REACH

Place of Origin : China

MOQ : Negotiable

Payment Terms : T/T, Western Union,Paypal

Delivery Time : 1-7 Working days

Packaging Details : 1pcs/box, 5pcs/ctn

Product : ODF

Application : FTTH FTTB FTTX Network

Part Number : GL-ODF24LC-902

Product type : Fixed type with cover

Material : Cold-rolled Steel

Ports : 48/96

Adapter Type : LC Duplex

Capacity : 96 Fibers

Rack Units : 3U

Mounting : 19" Rack Mounted

Dimension : 480*254*3U

Working temperature : -20℃~75℃

Storage temperature : -40~+85℃

Contact Now

Gorelink offers a variety of fiber patch panels. The rack-mounted fiber patch panel is a hardware unit that houses fiber optic connectors and facilitates the termination, connection, and management of fiber optic cables. It is designed to be mounted on a standard 19-inch server rack or network cabinet, providing an organized and secure way to manage fiber optic connections.There are 12 port,24 port,48 port,96 port available.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Parameters

Design

Fixed type with Cover

Material

Cold-rolled steel sheet

Mounting Type

19" Rack Mounted

Max Capacity

96 Fibers

No. Of Rack Unit

3U

No. Of Tray

4x24F

Capacity of Tray

24F

Adapter

LC Duplex Port

Loaded

LC/UPC SM Duplex adapter

Insertion Loss

≤ 0.3dB

Return Loss

≥ 55dB

Color

Black

Dimension

483x300x1U(44.5)mm

Operating Temperature (°C)

-20 ~ +75

Storage Temperature (°C)

-40 ~ +85

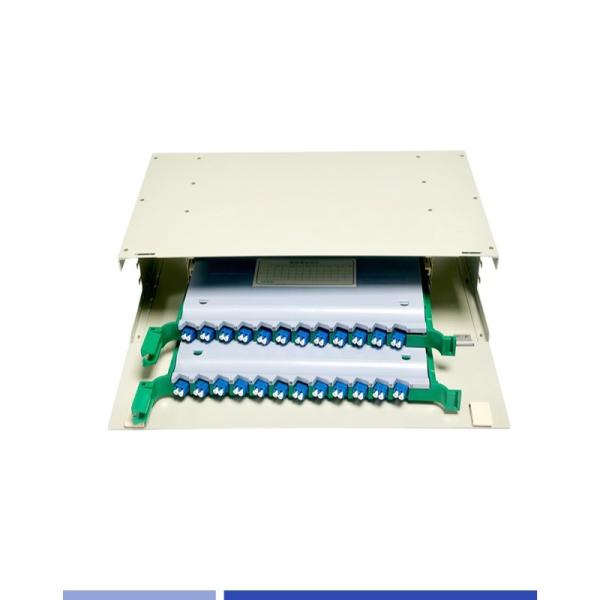

Rack Mounted Fiber Optic Patch Panel 3U ODF 19" 48 Port Fiber Patch Panel

Ordering Information

PART NO.

DESCRIPTION

GL-ODF12LC-902

12 Port ODF 1U 19" Rack Mounted 24 core, Loaded 12xLC SM Duplex adapter and pigtails

GL-ODF24LC-902

24 Port ODF 2U 19" Rack Mounted 48 core, Loaded 24xLC SM Duplex adapter and pigtails

GL-ODF48LC-902

48 Port ODF 3U 19" Rack Mounted 96 core, Loaded 48xLC SM Duplex adapter and pigtails

* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com .
