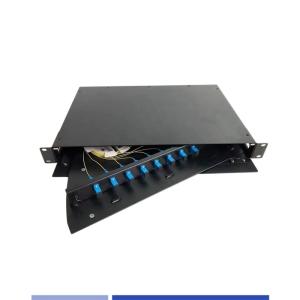

Fiber Optic patch panel 12 Port SC Simplex Rotary 1U 19" Rack Mounted Loaded

  • 1
  • 2
  • 3

Brand Name : GoreLink

MOQ : Negotiable

Payment Terms : T/T, Western Union,Paypal

Delivery Time : 1-7 Working days

Packaging Details : 1pcs/box

Model Number : G708-12SC-901

Certification : RoHS,REACH

Place of Origin : China

Application : FTTH FTTB FTTX Network

Part No. : G708-12SC-901

Number of Ports : 12

Tray : 24 cores per tray

Adapter type : LC,SC

Max Capacity : 48 cores

Fiber Mode : SM

Mounting : 19" Rack Mounted

Rack Units : 1U

Front Panel : Rotary

Material : Cold-rolled Steel

Color : Black

Dimension : 480* 250*1U

Working temperature : -10℃~70℃

Storage temperature : -20℃ ~ 85℃

OEM : Yes

Loaded : Optional

Contact Now

What is a Fiber Optic Patch Panel?

Gorelink offers a variety of fiber patch panels. The rack-mounted fiber patch panel is a hardware unit that houses fiber optic connectors and facilitates the termination, connection, and management of fiber optic cables. It is designed to be mounted on a standard 19-inch server rack or network cabinet, providing an organized and secure way to manage fiber optic connections. The patch panel can provide a place to terminate the incoming and outgoing fiber optic cables. Keep fiber optic cables neatly arranged and labeled for easy management. There are 12 ports, 24 ports, 48 ports, 96 ports available.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks


General Specification

Parameters

Design

Rotary sliding

Material

Cold-rolled steel sheet

Mounting Type

19" Rack Mounted

Capacity

24 Fibers

No. Of Rack Unit

1U

No. Of Tray

1x24F

Capacity of Tray

24F

Adapter

SC Simplex Port

Loaded

SC/UPC SM Simplex adapter

Insertion Loss

≤ 0.3dB

Return Loss

≥ 55dB

Color

Black

Dimension

483x250x1U(44.5)mm



Fiber Optic patch panel 12 Port SC Simplex Rotary 1U 19" Rack Mounted Loaded


Ordering Information


PART NO.

DESCRIPTION

G708-12SC

12 Port Rotary Fiber Optic patch panel, SC Simplex(12 Fibers),1U,19" Rack Mounted,Unloaded

G708-12SC-901

12 Port Rotary Fiber Optic patch panel, SC Simplex(12 Fibers),1U,19" Rack Mounted,Loaded SC/UPC SM Simplex adapter

* Customized



If you need any further assistance, please feel free to contact us at sales@gorelink.com .
