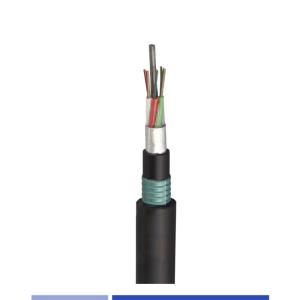

24 Fiber Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable

  • 1
  • 2

Place of Origin : Made in China

Brand Name : GoreLink

Certification : ISO,RoHS,REACH

MOQ : 1000m

Packaging Details : Wooden Drum

Delivery Time : As per the order quantity

Payment Terms : T/T,Paypal,Western Union

Model Number : GL-GYTA53-824

Application : Direct Burial Fiber Optic Cable

Part Number : GL-GYTA53-824

Fiber Type : Singlemode G652D

Fiber Count : 24 Fiber

Strength Member : Metallic central strength member

Inner sheath : PE

Armored : Aluminum tape+corrugated steel tape

Max. Capacity : Up to 288 cores

Fiber Code : GYTA53

Outer Jacket : PE

Contact Now

Gorelink Direct-buried fiber optic cables can be directly buried in the ground, which eliminates the need for additional protective conduits or ducts, saving installation time and costs. They are designed to offer increased durability and resistance to moisture, temperature fluctuations, and physical damage.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Singlemode G652D

Fiber Count

24 Core

Cable structure

Stranded Loose tube

Double Armor

Aluminum + Corrugated Steel Tape Armor

Inner Sheath

PE

Strength Member

Metallic

Cable Diameter

12.0-18.5mm

Outer Jacket

PE

Cable Color

Black

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

≤0.36 dB @1310nm

Core diameter(um)

9±2.5

Cladding diameter(um)

125±1.0

Wavelength

1310nm / 1550nm

24 Fiber Direct Burial Fiber Cable Singlemode OS2 Double Armored PE GYTA53 Outdoor Fiber Optic Cable

Download Datasheet

Outdoor Direct Burial Armored Fiber Optic Cable- GYTA53-Singlemode

Ordering Information

PART NO.

DESCRIPTION

GL-GYTA53-808

Outdoor Fiber Optic Cable, 8 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53

GL-GYTA53-812

Outdoor Fiber Optic Cable,12 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53

GL-GYTA53-824

Outdoor Fiber Optic Cable, 24 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53

GL-GYTA53-848

Outdoor Fiber Optic Cable, 48 Fiber,Singlemode G652D,Direct Buried, PE,Black,GYTA53

GL-GYTA53-896

Outdoor Fiber Optic Cable, 96 Fiber,Singlemode G652D, Direct Buried ,PE,Black,GYTA53

GL-GYTA53-8144

Outdoor Fiber Optic Cable, 144 Fiber,Singlemode G652D,Direct Buried,PE,Black,GYTA53

* Customized
